What is the difference between CT and PT?
Nov 28,2024
Current Transformers (CT) and Potential Transformers (PT), also known as Voltage Transformers (VT), are both types of electrical transformers used in power systems, but they serve different purposes and operate based on different principles. Here’s a breakdown of the key differences between the two:

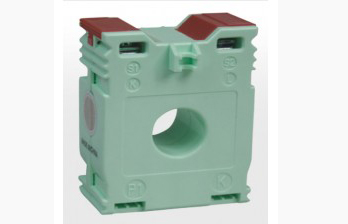

1. Purpose: CTs are used to measure alternating current (AC) by producing a secondary current that is proportional to the primary current flowing through its primary winding. They are primarily used for measurement and protection in electrical systems.
2. Operation: A CT works on the principle of electromagnetic induction. It typically has a much larger conductor (the primary winding) through which the current to be measured flows, and a secondary winding that produces a smaller current proportional to this.
3. Output: The output of a CT is a reduced current, usually standardized to 1 A or 5 A for easy interfacing with measurement devices like ammeters or relays.
4. Application: Commonly used in metering applications for measuring load currents and for protective relays in power distribution systems.
1. Purpose: PTs are used to measure voltage levels in an electrical system. They provide a scaled-down voltage proportional to the high voltage in the primary circuit, allowing for safe and accurate measurement.
2. Operation: Like CTs, PTs operate on the principle of electromagnetic induction, but they step down high voltage to a lower level, typically using a ratio that maintains the relationship between the primary and secondary voltages.
3. Output: The output of a PT is a lower voltage, often standardized to 120 V or other specified values for compatibility with standard voltage measuring instruments.
4. Application: Used in metering voltage and for providing input to relays and protection circuits that require voltage measurements.
5. Accuracy Class: PTs also have an accuracy class which defines their precision in measuring voltage.
- Output: CTs produce a scaled-down current; PTs produce a scaled-down voltage.
- Applications: CTs are used in current measurement and protection; PTs are used for voltage measurement and monitoring.
Both CTs and PTs are essential components in electrical systems for monitoring, control, and protection, but they are designed for distinctly different functions.
