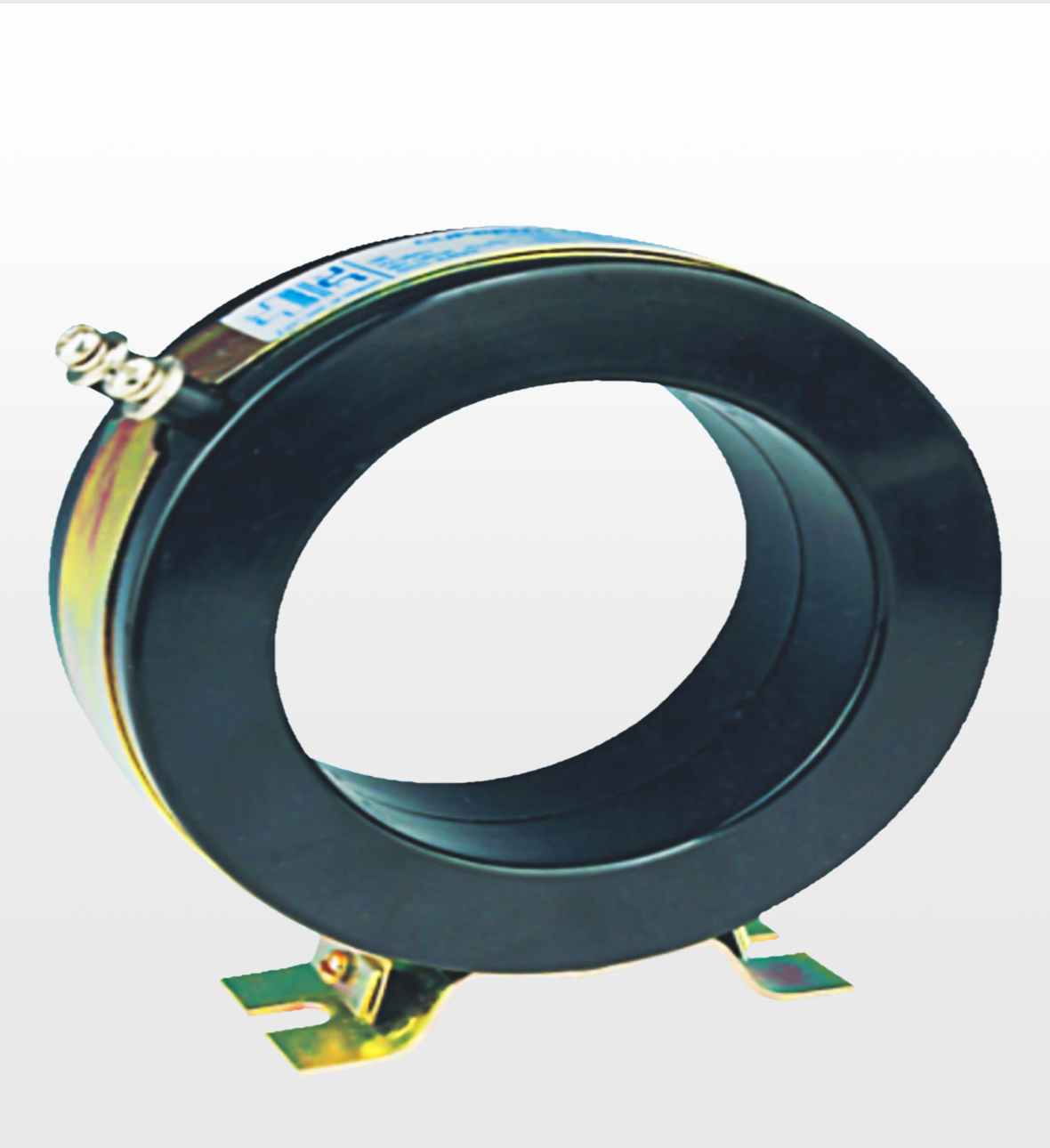

RS Series Current Transformer
Specifications
Ref. | Model | Ratio(A) | Burden(VA) |
Case Qty.(Pcs) |
Item Code | |
Class: 1.0 | Class: 0.5 | |||||
|
RS-50 | 300/5 | 15 | 15 | 30 | 895003005 |
RS-50 |
400/5 |
15 | 15 | 30 |
895004005 |
|
RS-50 |
500/5 |
15 | 15 | 30 |
895005005 |
|
RS-50 |
600/5 |
20 | 20 | 30 |
895006005 |
|
RS-50 |
800/5 |
20 | 20 | 30 |
895006005 |
|
Note: Class/VA rating must be mentioned when ordering There is no accessory for RS-50 model |
Ref. | Model | Ratio(A) | Burden(VA) |
Case Qty.(Pcs) |
Item Code | |
Class: 1.0 | Class: 0.5 | |||||
|
RS-65 | 500/5 | 15 | 15 | 30 | 896505005 |
RS-65 |
600/5 |
15 | 15 | 30 |
896506005 |
|
RS-65 |
800/5 |
15 | 15 | 30 |
896508005 |
|
RS-65 |
1000/5 |
15 | 15 | 30 |
896510005 |
|
RS-65 |
1500/5 |
15 | 15 | 30 |
896515005 |
|
RS-65 | 1600/5 | 15 | 15 | 30 | 896516005 | |
Note: Class/VA rating must be mentioned when ordering There is no accessory for RS-65 model |
Ref. | Model | Ratio(A) | Burden(VA) |
Case Qty.(Pcs) |
Item Code | |
Class: 1.0 | Class: 0.5 | |||||
|
RS-87 | 800/5 | 20 | 20 | 30 | 898708005 |
RS-87 |
1000/5 |
20 | 20 | 30 |
898710005 |
|
RS-87 |
1500/5 |
20 | 20 | 30 |
898715005 |
|
RS-87 |
2000/5 |
20 | 20 | 30 |
898720005 |
|
Note: Class/VA rating must be mentioned when ordering There is no accessory for RS-87 model |
Ref. | Model | Ratio(A) | Burden(VA) |
Case Qty.(Pcs) |
Item Code | |
Class: 1.0 | Class: 0.5 | |||||
|
RS-110 | 1500/5 | 20 | 20 | 20 | 891115005 |
RS-110 |
2000/5 |
20 | 20 | 20 |
891120005 |
|
RS-110 |
2500/5 |
20 | 20 | 20 |
891125005 |
|
RS-110 |
3000/5 |
30 | 30 | 20 |
891130005 |
|
RS-110 |
3200/5 |
30 | 30 | 20 |
891132005 |
|
Note: Class/VA rating must be mentioned when ordering There is no accessory for RS-110 model |
Ref. | Model | Ratio(A) | Burden(VA) |
Case Qty.(Pcs) |
Item Code | |
Class: 1.0 | Class: 0.5 | |||||
|
RS-140 | 3000/5 | 30 | 30 | 20 | 891430005 |
RS-140 |
3500/5 |
30 | 30 | 20 |
891435005 |
|
RS-140 |
4000/5 |
30 | 30 | 20 |
891440005 |
|
RS-140 |
5000/5 |
30 | 30 | 20 |
891450005 |
|
Note: Class/VA rating must be mentioned when ordering There is no accessory for RS-140 model |
