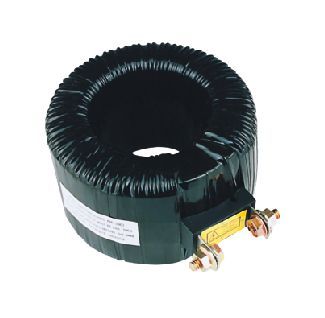

PR Series Current Transformer

The PR Series Current Transformer is used to measure electrical currents in various applications. It converts high primary currents into a lower, more manageable secondary current that can be safely used by measuring instruments and protection devices.

Specifications

Ref:	Model	Ratio （A）	Burden(VA) 10PS	Dimension（mm）			Case Qty.(Pcs)	Item Code
Ref:	Model	Ratio （A）	Burden(VA) 10PS	ID	OD	HT	Case Qty.(Pcs)	Item Code
	PR-30 10P10	60/5	15	30	145	155	4	910100605
	PR-34 10P10	100/5	15	34	100	168	4	910101005
	PR-34 10P10	150/5	15	34	100	108	8	910101505
	PR-34 10P10	200/5	15	34	100	88	8	910102005
	PR-45 10P10	250/5	15	45	96	108	8	910102505
	PR-45 10P10	300/5	15	45	96	98	8	910103005
	PR-60 10P10	400/5	15	60	100	98	7	910104005
	PR-60 10P10	500/5	15	60	100	83	8	910105005
	PR-68 10P10	600/5	15	68	110	68	7	910106005
	PR-85 10P10	800/5	15	85	120	63	8	910108005
	PR-82 10P10	1000/5	15	82	123	55	8	910110005
	PR-82 10P10	1200/5	15	82	123	55	8	910112005
	PR-82 10P10	1600/5	15	82	123	45	8	910116005
	PR-125 10P10	2000/5	15	125	178	35	8	910120005
	PR-125 10P10	2500/5	15	125	178	35	8	910125005
	PR-120 10P10	3000/5	15	120	178	35	8	910130005
	PR-140 10P10	3500/5	15	140	200	35	8	910135005
	PR-140 10P10	4000/5	15	140	200	35	8	910140005
	PR-140 10P10	5000/5	15	140	200	35	8	910150005
	Note： Class/VA rating must be mentioned when ordering. There is no accessory for PR 10P10 model.

Ref:	Model	Ratio （A）	Burden(VA) 10PS	Dimension（mm）			Case Qty.(Pcs)	Item Code
Ref:	Model	Ratio （A）	Burden(VA) 10PS	ID	OD	HT	Case Qty.(Pcs)	Item Code
	PR-30 5P10	60/5	15	30	145	165	8	951000605
	PR-34 5P10	100/5	15	34	100	180	4	951001005
	PR-34 5P10	150/5	15	34	100	130	8	951001505
	PR-34 5P10	200/5	15	34	100	110	8	951002005
	PR-45 5P10	250/5	15	45	96	110	8	951002505
	PR-45 5P10	300/5	15	45	96	110	8	951003005
	PR-60 5P10	400/5	15	45	96	90	7	951004005
	PR-60 5P10	500/5	15	60	100	100	8	951005005
	PR-68 5P10	600/5	15	68	110	78	7	951006005
	PR-85 5P10	800/5	15	85	120	78	8	951008005
	PR-82 5P10	1000/5	15	82	123	70	8	951010005
	PR-82 5P10	1200/5	15	82	123	70	8	951012005
	PR-82 5P10	1600/5	15	82	123	60	8	951016005
	PR-125 5P10	2000/5	15	125	178	38	8	951020005
	PR-125 5P10	2500/5	15	125	178	35	8	951025005
	PR-120 5P10	3000/5	15	120	178	35	8	951030005
	PR-140 5P10	3500/5	15	140	200	35	8	951035005
	PR-140 5P10	4000/5	15	140	200	35	8	951040005
	PR-140 5P10	5000/5	15	140	200	35	8	951050005
	Note： Class/VA rating must be mentioned when ordering. There is no accessory for PR 10P10 model.
