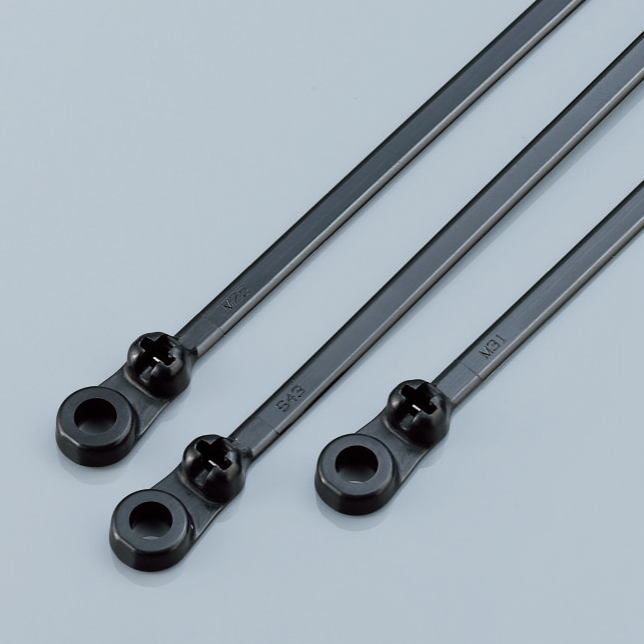

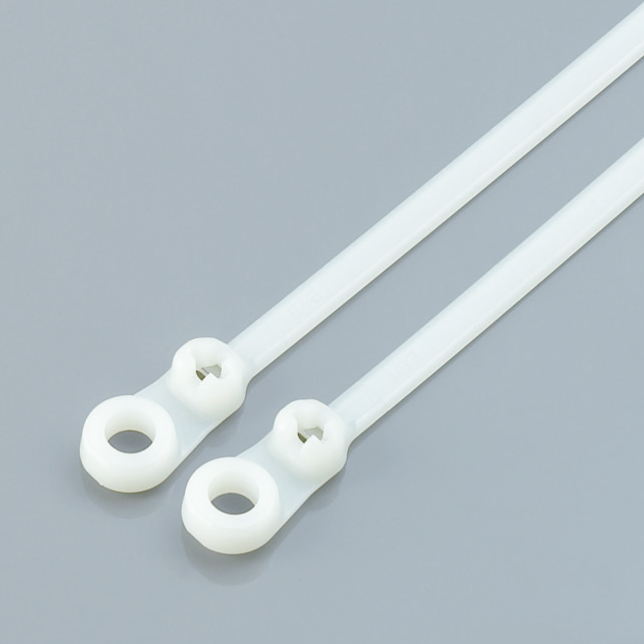

Nylon Stainless Steel Inlay Block Cable Ties

Standard and characteristic

Nylon is it bring technical feature accord with IEC92-3-84 standard and GB3126-82 "boat nonmetal cable is it lead to pitch" professional standard totally to pitch. Pitching bring environment temperature -25 degrees Centigrade - 60 degrees Centigrade of use, tensile strength accords with the standard request.

Material and characteristic

Adopt 66 materials of nylon to make, insulating and of good performance, difficult firing, easy to operate, the characteristics, such as one of worker's province in the province, etc..

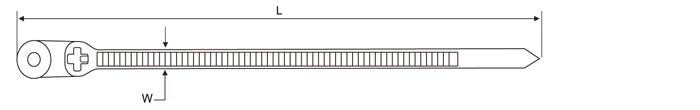

Specifications

ITEM NO.	Length		Width		Max. Bundle Dia. mm	Tensle Strength
ITEM NO.	inch	mm	inch	mm	Max. Bundle Dia. mm	lbs	kgs
NSS-2.5×100	4	100	0.098	2.5	22	18	8.0
NSS-3.6×100	4	100	0.141	3.6	22	40	18
NSS-3.6×150	6	150	0.141	3.6	32	50	18
NSS-4.8×200	8	200	0.189	4.8	42	50	22
NSS-7.2×200	8	300	0.283	7.2	80	120	55
NSS-7.2×300	12	200	0.283	7.2	50	120	55
NSS-7.2×350	14	350	0.283	7.2	90	120	55
NSS-7.2×380	14	380	0.283	7.2	90	120	55
