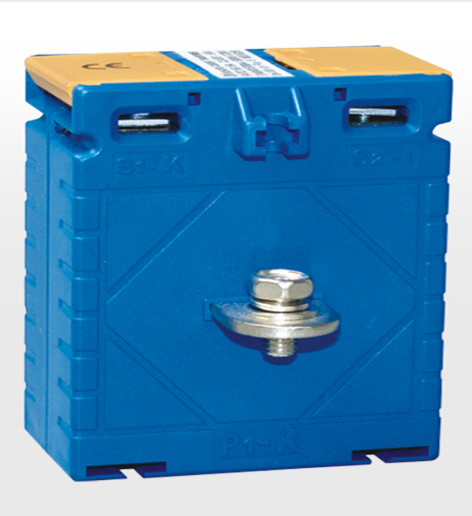

MES Series Current Transformer

The MES Series Current Transformer (CT) is designed to measure high currents and convert them into a smaller, manageable current that can be easily monitored and analyzed by instruments and protective devices.

Ref	Model	Ratio(A)	Burden （VA）		Case Qty.(Pcs)	Item Code
			Class:0.5	Class：1.0
	MES-100/80	600	10	15	60	508006005
	MES-100/80	750	10	15	60	508007505
	MES-100/80	800	10	15	60	508008005
	MES-100/80	1000	15	20	60	508010005
	MES-100/80	1200	15	20	60	508012005
	MES-100/80	1250	15	20	60	508012505
	MES-100/80	1500	15	20	60	508015005
	MES-100/80	1600	15	20	60	508016005
	MES-100/80	2000/5	15	20	60	508020005
	Note: Class/VA rating must be mentioned when ordering.



Ref	Model	Ratio(A)	Burden （VA）		Case Qty.(Pcs)	Item Code
			Class:0.5	Class：1.0
	MES-145/100	800/5	10	15	30	510008005
	MES-145/100	1000/5	15	20	30	510010005
	MES-145/100	1200/5	15	20	30	510012005
	MES-145/100	1250/5	15	20	30	510012505
	MES-145/100	1500/5	15	20	30	510015005
	MES-145/100	1600/5	15	20	30	510016005
	MES-145/100	2000/5	15	25	30	510020005
	MES-145/100	2500/5	15	25	30	510030005
	MES-145/100	3000/5	15	25	30
	Note: Class/VA rating must be mentioned when ordering.
