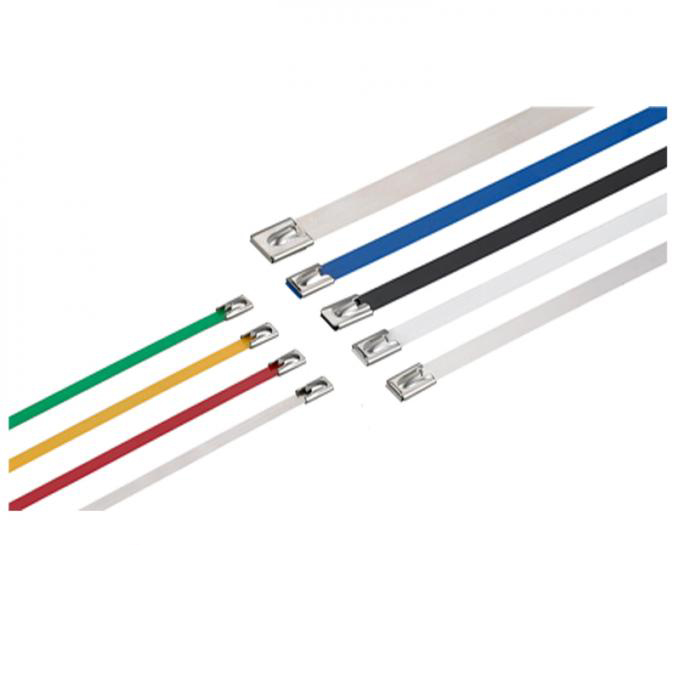

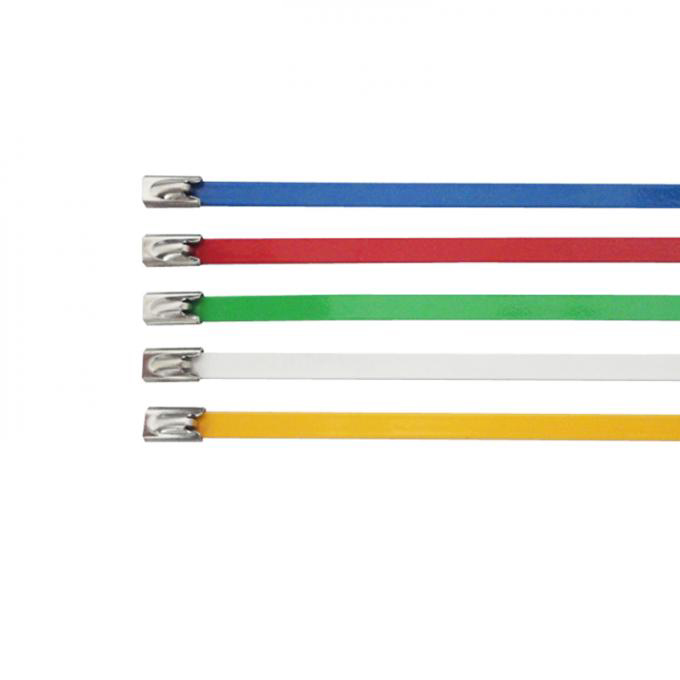

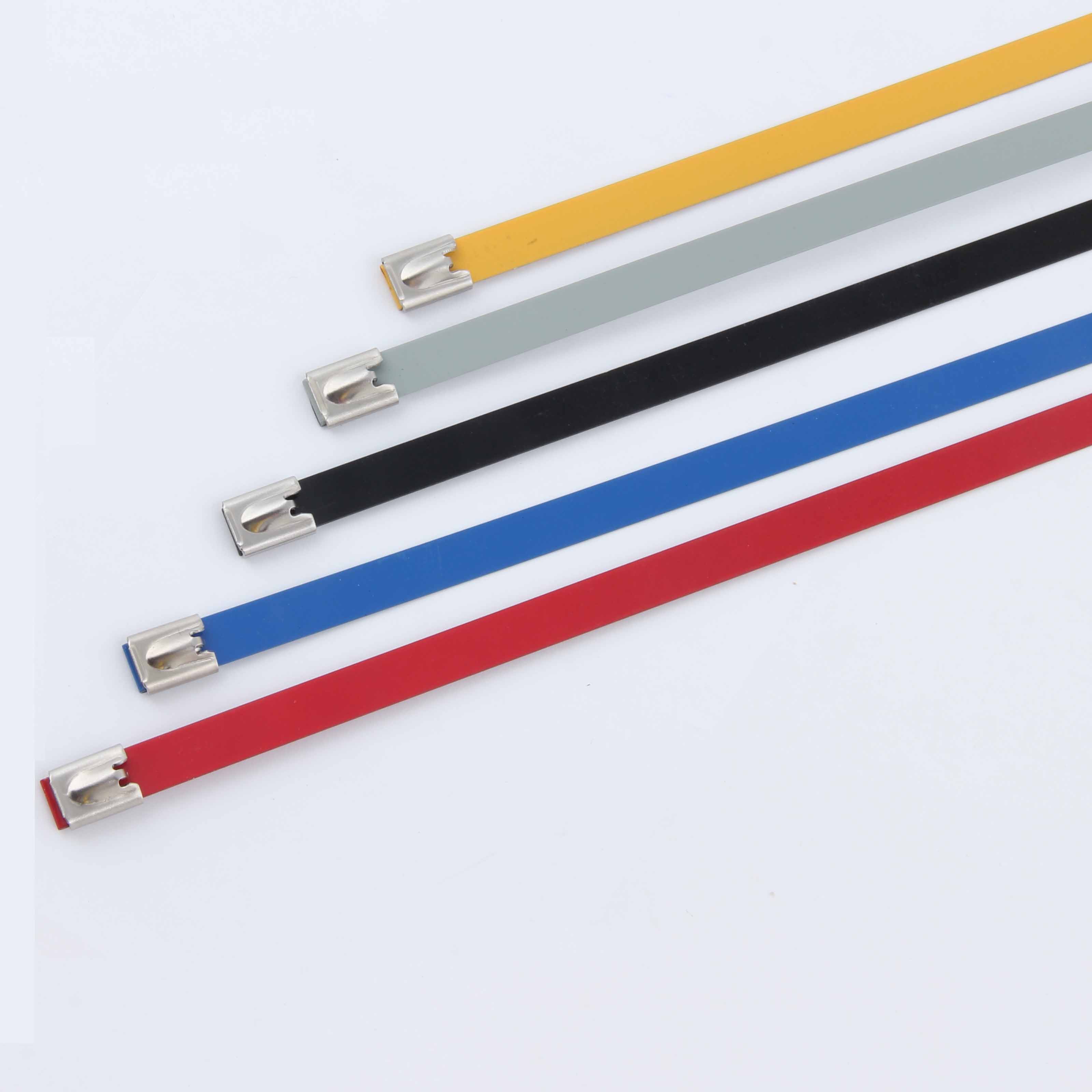

Colorized Epoxy-Polyester Coated ss Ball Lock Ties
Colorized epoxy-polyester coated stainless steel ball lock ties are a specialized type of cable tie designed for secure and durable fastening. These ties are made from stainless steel, which provides excellent strength and corrosion resistance. The added epoxy-polyester coating offers enhanced protection against environmental factors like UV radiation, moisture, and chemicals, while also allowing for color-coding to easily identify different cable bundles or applications.
Specifications
Item No. |
Length mm (inch) |
Width mm (inch) |
Max. Bundle Diameter mm(inch) |
Thickness mm (inch) |
Min. Tensile Strength kg (lbs) |
4.6×150 | 150 (5.90) |
4.6 (0.181) |
37 (1.46) | 0.4 (0.016) | 600 (1350) |
4.6×200 | 200 (7.87) |
4.6 (0.181) |
50 (1.97) |
0.4 (0.016) |
600 (1350) |
4.6×250 |
250 (9.84) |
4.6 (0.181) |
63 (2.48) |
0.4 (0.016) |
600 (1350) |
4.6×300 |
300 (11.8) |
4.6 (0.181) |
76 (2.99) |
0.4 (0.016) |
600 (1350) |
4.6×350 |
350 (13.78) |
4.6 (0.181) |
89 (3.50) |
0.4 (0.016) |
600 (1350) |
4.6×400 |
400 (15.75) |
4.6 (0.181) |
102 (4.02) |
0.4 (0.016) |
600 (1350) |
4.6×450 |
450 (17.72) |
4.6 (0.181) |
115 (4.53) |
0.4 (0.016) |
600 (1350) |
4.6×500 |
500 (19.69) |
4.6 (0.181) |
128 (5.04) |
0.4 (0.016) |
600 (1350) |
4.6×550 |
550 (21.65) |
4.6 (0.181) |
141 (5.55) |
0.4 (0.016) |
600 (1350) |
4.6×600 | 600 (23.62) |
4.6 (0.181) |
154 (6.06) |
0.4 (0.016) |
600 (1350) |
4.6×650 |
650 (25.59) |
4.6 (0.181) |
167 (6.57) |
0.4 (0.016) |
600 (1350) |
4.6×700 |
700 (27.56) |
4.6 (0.181) |
180 (7.09) |
0.4 (0.016) |
600 (1350) |
4.6×750 |
750 (29.53) |
4.6 (0.181) |
191 (7.52) |
0.4 (0.016) |
800 (1800) |
7.9×150 | 150 (5.90) | 7.9 (0.311) | 37 (1.46) |
0.4 (0.016) |
800 (1800) |
7.9×200 | 200 (7.87) |
7.9 (0.311) |
50 (1.97) |
0.4 (0.016) |
800 (1800) |
7.9×250 |
250 (9.84) |
7.9 (0.311) |
63 (2.48) |
0.4 (0.016) |
800 (1800) |
7.9×300 |
300 (11.80) |
7.9 (0.311) |
76 (2.99) |
0.4 (0.016) |
800 (1800) |
7.9×350 |
350 (13.78) |
7.9 (0.311) |
89 (3.50) |
0.4 (0.016) |
800 (1800) |
7.9×400 |
400 (15.75) |
7.9 (0.311) |
102 (4.02) |
0.4 (0.016) |
800 (1800) |
7.9×450 |
450 (17.72) |
7.9 (0.311) |
115 (4.53) |
0.4 (0.016) |
800 (1800) |
7.9×500 |
500 (19.69) |
7.9 (0.311) |
128 (5.04) |
0.4 (0.016) |
800 (1800) |
7.9×550 |
550 (21.65) |
7.9 (0.311) |
141 (5.55) |
0.4 (0.016) |
800 (1800) |
7.9×600 |
600 (23.62) |
7.9 (0.311) |
154 (6.06) |
0.4 (0.016) |
800 (1800) |
7.9×650 |
650 (25.59) |
7.9 (0.311) |
167 (6.57) |
0.4 (0.016) |
800 (1800) |
7.9×700 |
700 (27.56) |
7.9 (0.311) |
180 (7.09) |
0.4 (0.016) |
800 (1800) |
7.9×750 |
750 (29.53) |
7.9 (0.311) |
191 (7.52) |
0.4 (0.016) |
800 (1800) |
7.9×800 |
800 (31.50) |
7.9 (0.311) |
193 (7.59) |
0.4 (0.016) |
800 (1800) |
7.9×850 |
850 (33.40) |
7.9 (0.311) |
208 (8.18) |
0.4 (0.016) |
800 (1800) |
7.9×900 |
900 (35.40) |
7.9 (0.311) |
217 (8.54) |
0.4 (0.016) |
800 (1800) |
7.9×950 |
950 (37.40) |
7.9 (0.311) |
231 (9.09) |
0.4 (0.016) |
800 (1800) |
7.9×1000 |
1000 (39.40) |
7.9 (0.311) |
243 (9.56) |
0.4 (0.016) |
800 (1800) |
7.9×1050 |
1050 (41.40) |
7.9 (0.311) |
255 (10.04) |
0.4 (0.016) |
800 (1800) |
7.9×1100 |
1100 (43.40) |
7.9 (0.311) |
268 (10.55) |
0.4 (0.016) |
800 (1800) |
12×200 |
200 (7.87) | 12 (0.724) | 50 (1.97) |
0.4 (0.016) |
1200 (2700) |
12×250 |
250 (9.84) |
12 (0.724) |
63 (2.48) |
0.4 (0.016) |
1200 (2700) |
12×300 | 300 (11.80) |
12 (0.724) |
76 (2.99) |
0.4 (0.016) |
1200 (2700) |
12×350 |
350 (13.78) |
12 (0.724) |
89 (3.50) |
0.4 (0.016) |
1200 (2700) |
12×400 | 400 (15.75) |
12 (0.724) |
102 (4.02) |
0.4 (0.016) |
1200 (2700) |
12×450 |
450 (17.72) |
12 (0.724) |
115 (4.53) |
0.4 (0.016) |
1200 (2700) |
12×500 | 500 (19.69) |
12 (0.724) |
128 (5.04) |
0.4 (0.016) |
1200 (2700) |
12×550 |
550 (21.65) |
12 (0.724) |
141 (5.55) |
0.4 (0.016) |
1200 (2700) |
12×600 | 600 (23.62) |
12 (0.724) |
154 (6.06) |
0.4 (0.016) |
1200 (2700) |
12×650 |
650 (25.59) |
12 (0.724) |
167 (6.57) |
0.4 (0.016) |
1200 (2700) |
12×700 | 700 (27.56) |
12 (0.724) |
180 (7.09) |
0.4 (0.016) |
1200 (2700) |
12×750 |
750 (29.53) |
12 (0.724) |
191 (7.52) |
0.4 (0.016) |
1200 (2700) |
12×800 |
800 (31.50) |
12 (0.724) |
193 (7.59) |
0.4 (0.016) |
1200 (2700) |
12×850 | 850 (33.40) |
12 (0.724) |
208 (8.18) |
0.4 (0.016) |
1200 (2700) |
12×900 |
900 (35.40) |
12 (0.724) |
217 (8.54) |
0.4 (0.016) |
1200 (2700) |
12×950 | 950 (37.40) |
12 (0.724) |
231 (9.09) |
0.4 (0.016) |
1200 (2700) |
12×1000 | 1000 (39.40) |
12 (0.724) |
243 (9.56) |
0.4 (0.016) |
1200 (2700) |
12×1050 |
1050 (41.40) |
12 (0.724) |
255 (10.04) |
0.4 (0.016) |
1200 (2700) |
12×1100 |
1100 (43.40) |
12 (0.724) |
268 (10.55) |
0.4 (0.016) |
1200 (2700) |
