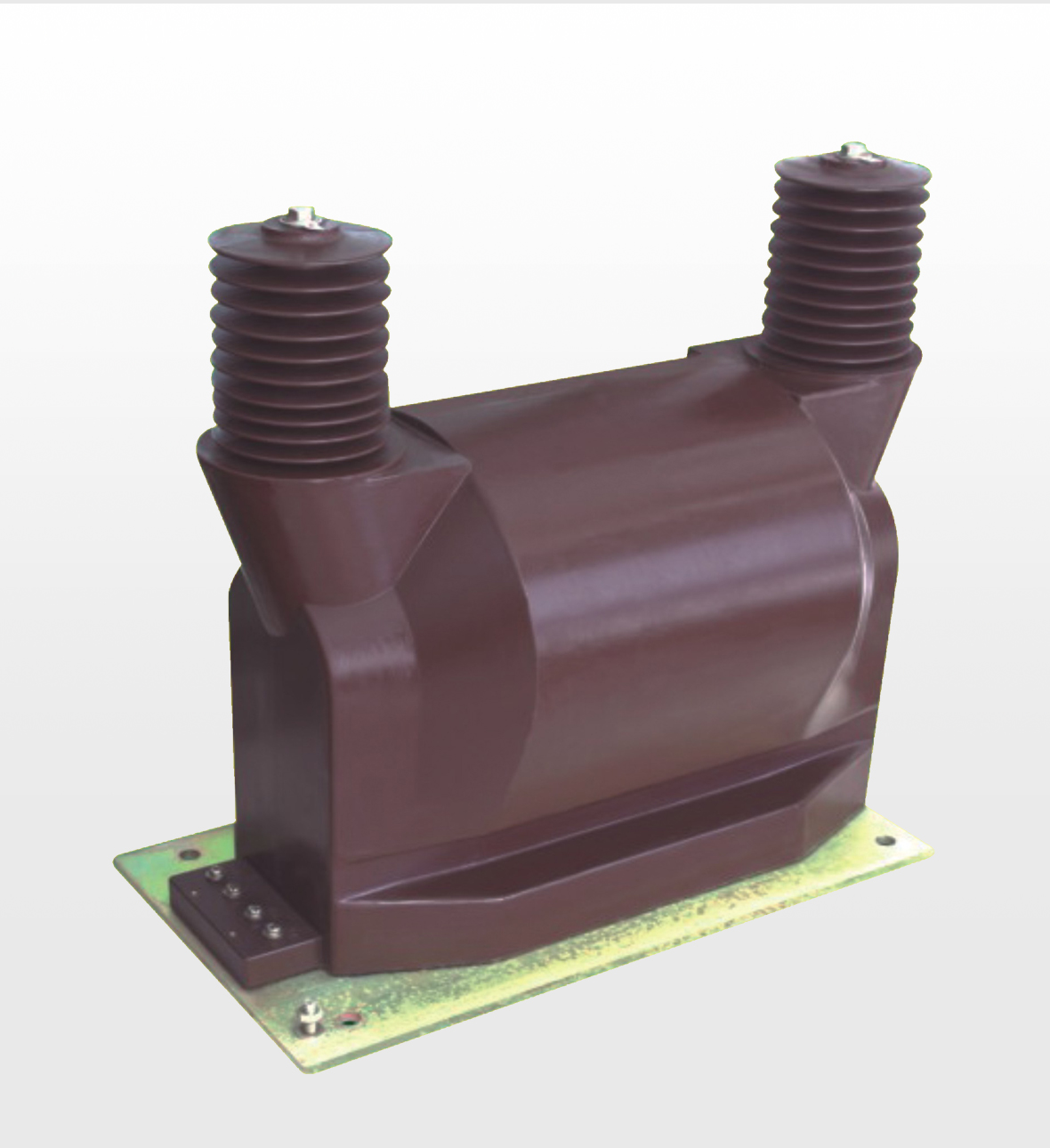

35kv Indoor VT Series Current Transformer

The 35kV Indoor VT (Voltage Transformer) Series Current Transformer is specifically designed for high-voltage applications within indoor settings, commonly utilized in electrical substations and distribution systems. Here are some of the key features and applications:

Key Features:
1. High Voltage Rating: Designed to handle voltages up to 35kV, making it suitable for various indoor applications.
2. Compact Design: Optimized for space-saving installations, perfect for environments where space is limited.
3. Precision Measurement: Provides accurate voltage measurements for monitoring and protection of electrical systems.
4. Insulation: Equipped with premium insulation materials to ensure safety and reliability under high voltage conditions.
5. Durability: Built to last with robust materials that can withstand indoor environmental factors, including dust and moisture.
6. Low Losses: Designed for minimal energy losses, enhancing overall efficiency in power systems.

Applications:
- Substation Equipment: Commonly used in transformer stations for voltage measurement and control.
- Control Circuits: Integrates into control circuits for monitoring and protection systems.
- Grid Management: Facilitates effective management and monitoring of the power distribution network.

Model	Voltage Ratio(V)	Accuracy Index	Burden(VA)	Ultimate Burden(VA)	Insulated Level(kV)
JDZ9-35	35000/100	0.2 0.5 1.0	30 80 120	1000	40.5/95/185
JDZF9-35	35000/100/100	0.2/0.5	30/50	600

Note: Special specification upon request. please contact our sales team about your solution。

Model	Voltage Ratio(V)	Accuracy Index	Burden(VA)	Ultimate Burden(VA)	Remark
JDZX9-35	35000/√3/100/√3/100/3	0.2/6P	30/100	600	Same with VKI
		0.5/6P	80/100	600
JDZXF9-35	35000/√3/100/√3/100/√3/100/3	0.2/0.5/6P	30/50/100	300
